Utensils Washers Series UTENCIL

Utensils Washers Series UTENCIL

EASY AND INTUITIVE

The new technology of the UTENCIL line will lead you in an easy and intuitive way, through the functions of your potwasher.

The soft-touch panel with the LCD board  with the multicolor key clearly shows the working temperatures, the washing cycles and the funtions in use.

Thanks to its self-diagnostic system it notifies any anomaly.

The innovative rinse-circuit, the energy saving system that reduces the boiler temperature when the appliance is waiting for another washing-cycle and the high quality performances make these machines extremely competitive and versatile.



Main Features:

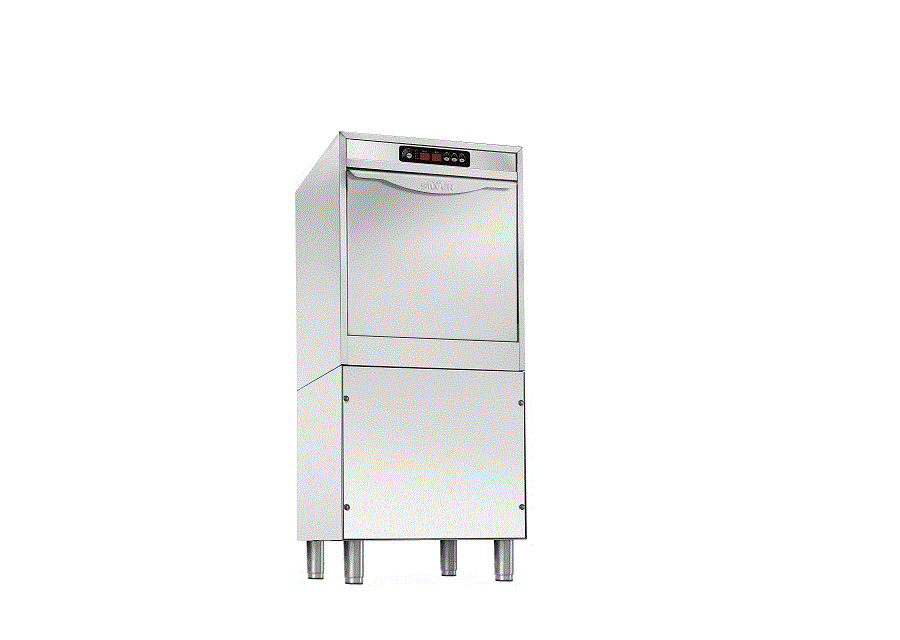

H 600 S

High capacity in small dimensions

Versatility of use

Double skin

Deep-formed tank

Triple pump filter (G600 S)

Measure (600x400 mm)

Automatic self-cleaning cycle

Built-in water softener available with automatic regeneration cycle (G600 S)

PLUS SYSTEM for an extra guaranteed rinse result (HP1 S5 PLUS)



H 600 E PLUS

Measure (600x400 mm)

Hood regulated start/stop functions

Chair type tank

Self cleaning vertical pump

Independent wash/rinse arms

Double tank filter with dirt collection system + pump filter

Easy to access for maintenance

Anti-drop roof panel

Tank and boiler thermometres

Linear or angular layouts

Self-cleaning automatic cycle

PLUS SYSTEM for an extra guaranteed rinse result

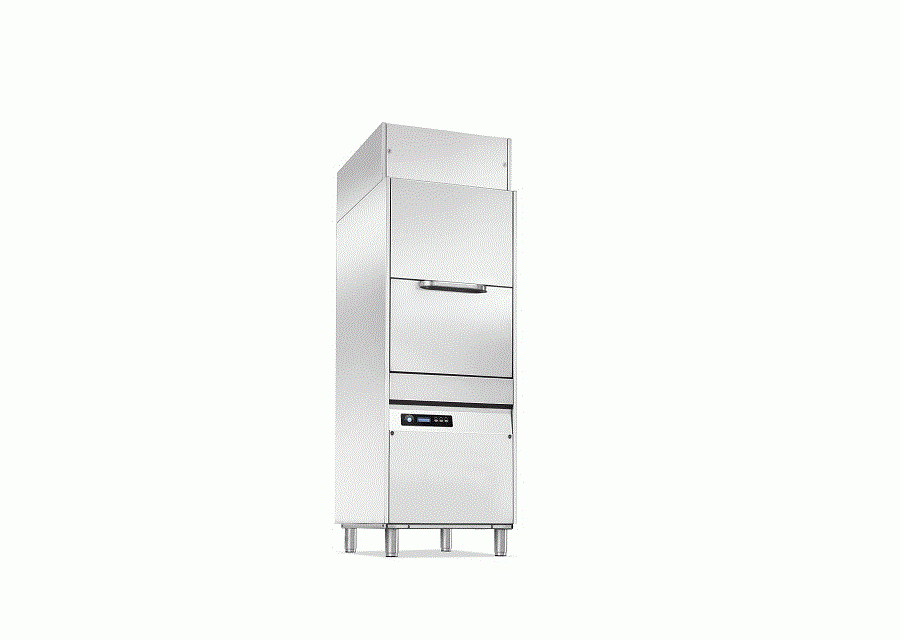

HP1 800

5 wash cycles

Max loading 805 mm

Double skin door

Deep-formed tank

Double tank filter + pump filter

Easy to access for maintenance

Standard rinse pump

Anti-drop roof panel

Self-cleaning automatic cycle

Basket 550x665mm

Stainless steel wash and rinse arms



HP1 S8 PLUS / HP2 S PLUS
HP3 S PLUS / HP4 S8 PLUS

Option heat recovery (TR)

Electronic with energy saving system

Double skin

Self cleaning vertical pump

Deep-formed chair tank

Stainless steel independent wash/rinse arms

Double tank filter, with dirt collection system + pump filter

Standard rinse pump

Thermostop to grant the rinse temperature according to HACCP regulations

Multichromatic START key

Automatic self-cleaning cycle

Four washing cycles

The washing pumps activate one after the other to reduce the electric peak (HP2 S / HP3 S / HP4 S8 PLUS)

Double skinned door that can be used as a countertop

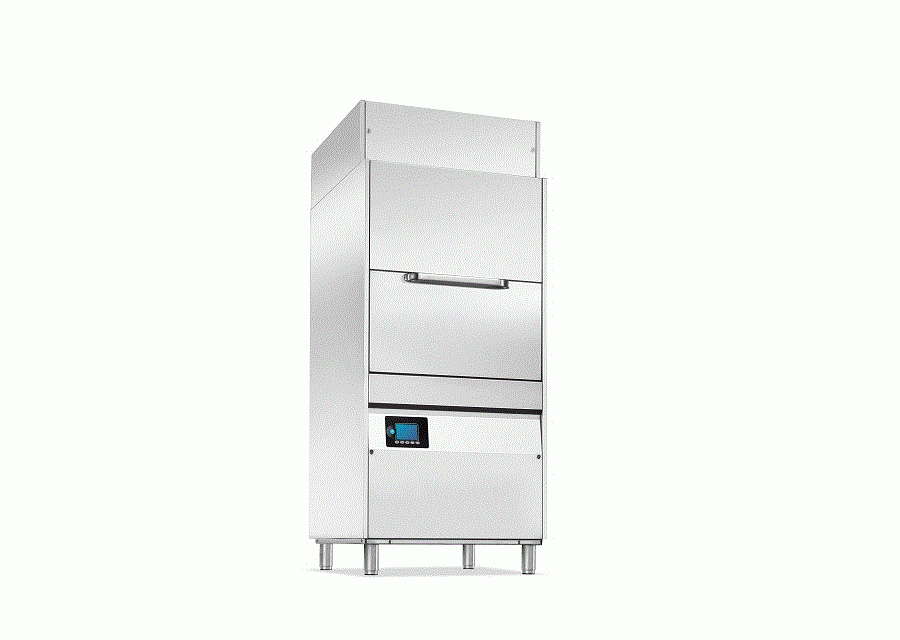

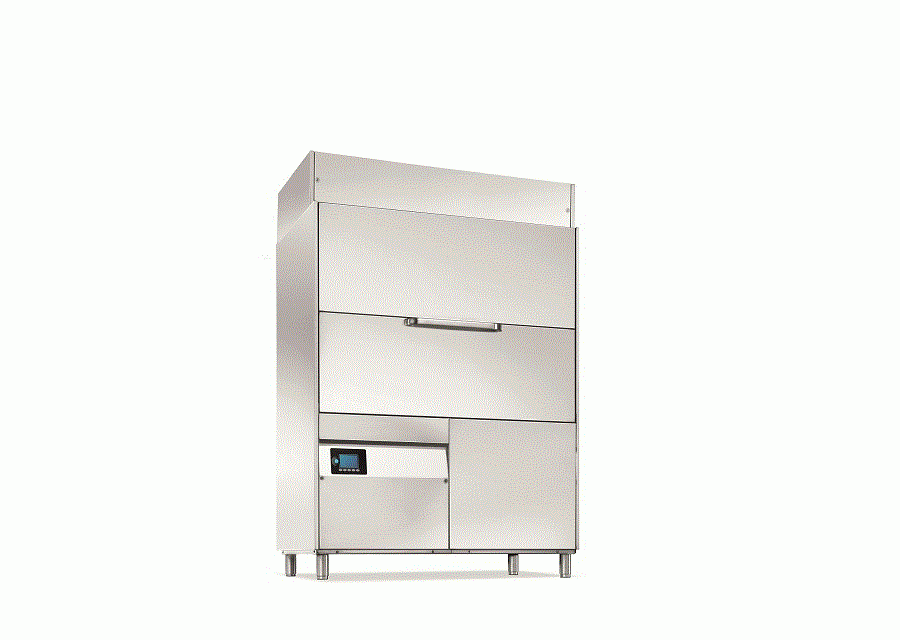

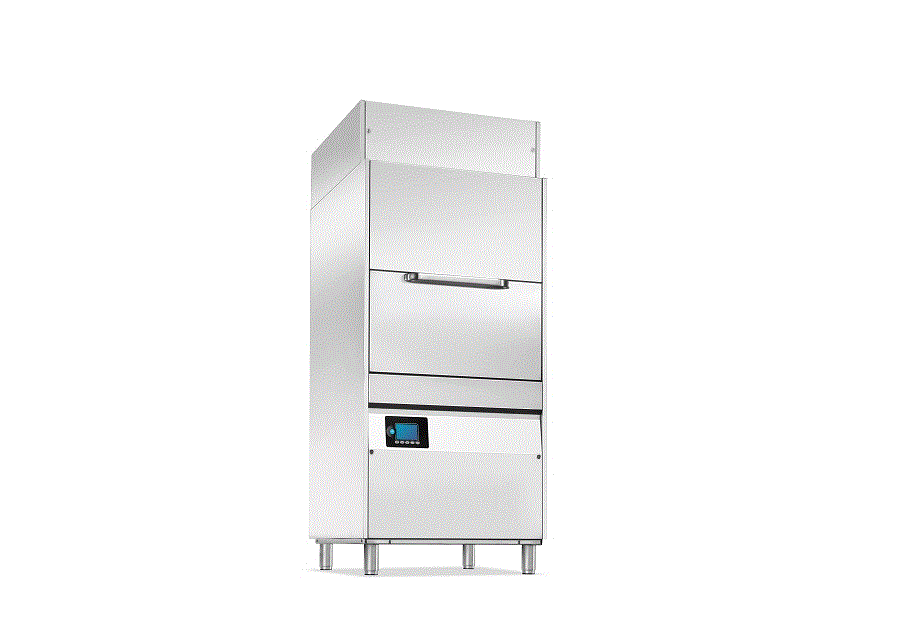

TR:
STEAM CONDENSER
HEAT RECOVERY SYSTEM
ENERGY SAVING
CARE FOR THE ENVIRONMENT
AND YOUR HEALTH

With the SILVER warewashing models HP1S8TR / HP2STR / HP3STR / HP4S8TR PLUS, up to 50% of energy costs can be saved!

The TR system is an heat exchanger: the moist warm water vapour is drawn directly out of
the machine when the door is closed, and used for pre-heating the cold water supplied up to around 50°C.

As a result, the energy required to reach the final rinse temperature (approx. 85°C) is dramatically reduced.

Depending on the model you can save between 3,5kWh and 5,5kWh.

SILVER TR technology improves the room‘s
air quality and climate as well.

The heat exchanger reduces the exhaust air temperature by more than an half.

The entire humidity volume is cut down by approx.-20% of the equivalent machine without a heat recovery unit.

This permanently improves the operators comfort.



MULTICHROME START KEY

The innovative backlit START button, thanks to its polychromatic and gleaming functions, notifies every cycle of the machine

Each color indicates a precise work phase

WHITE: setting

RED: loading and heating

RED FLASHING: alarms

GREEN: ready to work

GREEN AND BLUE INTERMITTENT: cycle ended

BLUE: wash cycle running

BLUE FLASHING: tank drain, boiler total drain, selfcleaning, resins regeneration

​PLUS SYSTEM

The rinse cycle is stabilized at 85°C temperature and flows at a constant pressure, thanks to the atmospheric boiler which avoids to add fresh water from the mains, when rinsing.

Moreover the PLUS System grants a better control and a correct dosage of rinse-aid at every cycle.
